Homogenization and cross-calibration

Homogenization and cross-calibration are done at different steps of the processing.

The first homogenization step consists of acquiring altimeter and ancillary data from the different altimeters that are a priori as homogeneous as possible. The DUACS processing is based on the altimeter standards given by L2p products. They include the most recent standards recommended for altimeter global products by the different agencies and expert groups such as OSTST, ESA Quality Working groups or ESA SL_cci project. Each mission is processed separately as its needs depend on the input data. When available, a specific standard recommended for regional processing can be applied by DUACS. The list of corrections applied is given in the Table below. Details of the standards used (i.e. the precise algorithm references) for the different corrections for DT and NRT production are given in the QUID document.


  Correction Applied or not in the DUACS processing
Environnemental corrections Ionosphere yes
Dry troposphere yes
Wet troposphere yes
Sea state bias yes
Geophysical corrections Dynamic Atmospherical Correction yes
Ocean tide yes
Pole tide yes
Solid earth tide yes
Laoding tide yes
Glacial Isostatic Adjustment No

Table: List of the different corrections that can be applied on altimeter measurements. The standards actually used for the different corrections are described in the QUID document.

Input L2p products includes a first cross-calibration processing that consists in ensuring mean sea level continuity between the four altimeter reference missions (Topex/Poseidon, Jason-1, 2 and 3). This step, crucial for climate signals, is done as accurately as possible in REP/DT conditions, taking into account both the global and the regional biases, as presented in Pujol et al (2016). In NRT conditions, the accuracy of this cross-calibration step is reduced due to the temporal variability of the orbit solutions. Only the global bias between the reference missions is usually corrected.

Nevertheless, they are not always coherent at large regional scales due to various sources of geographically correlated errors (instrumental, processing, orbit residuals errors). Consequently, the DUACS multi-mission cross-calibration algorithm aims to reduce these errors in order to generate a global, consistent and accurate dataset for all altimeter constellations. This step processing consists of applying the Orbit Error Reduction (OER) algorithm. This process consists of reducing orbit errors through a global minimization of the crossover differences observed for the reference mission, and between the reference and other missions also identified as complementary and opportunity missions, as presented by Le Traon and Ogor (1998). Multi-satellite crossover determination is performed on a daily basis. All altimeter fields (measurement, corrections and other fields such as bathymetry, MSS,…) are interpolated at crossover locations and dates. Crossovers are then appended to the existing crossover database as more altimeter data become available. This crossover data set is the input of the OER method. Using the precision of the reference mission orbit (Topex/Jason series), an accurate orbit error can be estimated. This processing step is applied on GDR/NTC as well as on IGDR/STC measurements. It does not concern OGDR/NRT. Specifically, to the OGDR measurements processing, the DUACS system includes SLA filtering. The reduced quality of the orbit solution indeed limits the use of the long-wavelength signal with these OGDR products. The DUACS processing extracts from these data sets the short scales (< ~900 km) which are useful to better describe the ocean variability in real time, and merge this information with a fair description of large scale signals provided by the multi-satellite observation in near real time. Finally, a “hybrid” SLA is computed. This OGDR processing is summarized in the following figure.

The last step consists in applying the long wavelength error (LWE) reduction algorithm based on Optimal Interpolation (see for instance; Le Traon et al, 2003; Pujol et al, 2016). This process reduces geographically-correlated errors between neighboring tracks from different sensors. This optimal-interpolation based empirical correction also contributes to reduction of the residual high frequency signal that is not fully corrected by the different corrections that are applied (mainly the Dynamic Atmospheric Correction and Ocean tides).

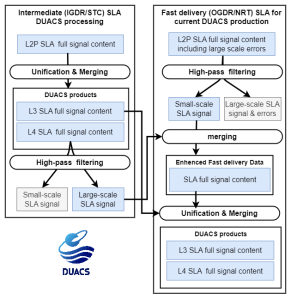

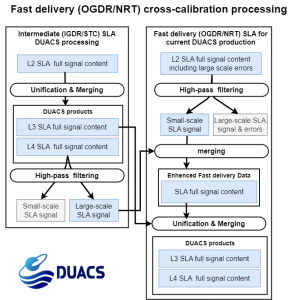

Figure : Merging relevant information from IGDR and OGDR processing
